I have developed a series of accessories for the MPT to expand its applications and utility as well as make work faster, easier and more accurate. All of the accessories integrate into the MPT's system of 20mm holes as a means of registration and attachment. Below are some photos of the accessories that I have designed and built along with a brief description. You can purchase a complete set of plans and instructions on how to build your own MPT accessories by clicking on the button below.
See the MPT accessories in action!

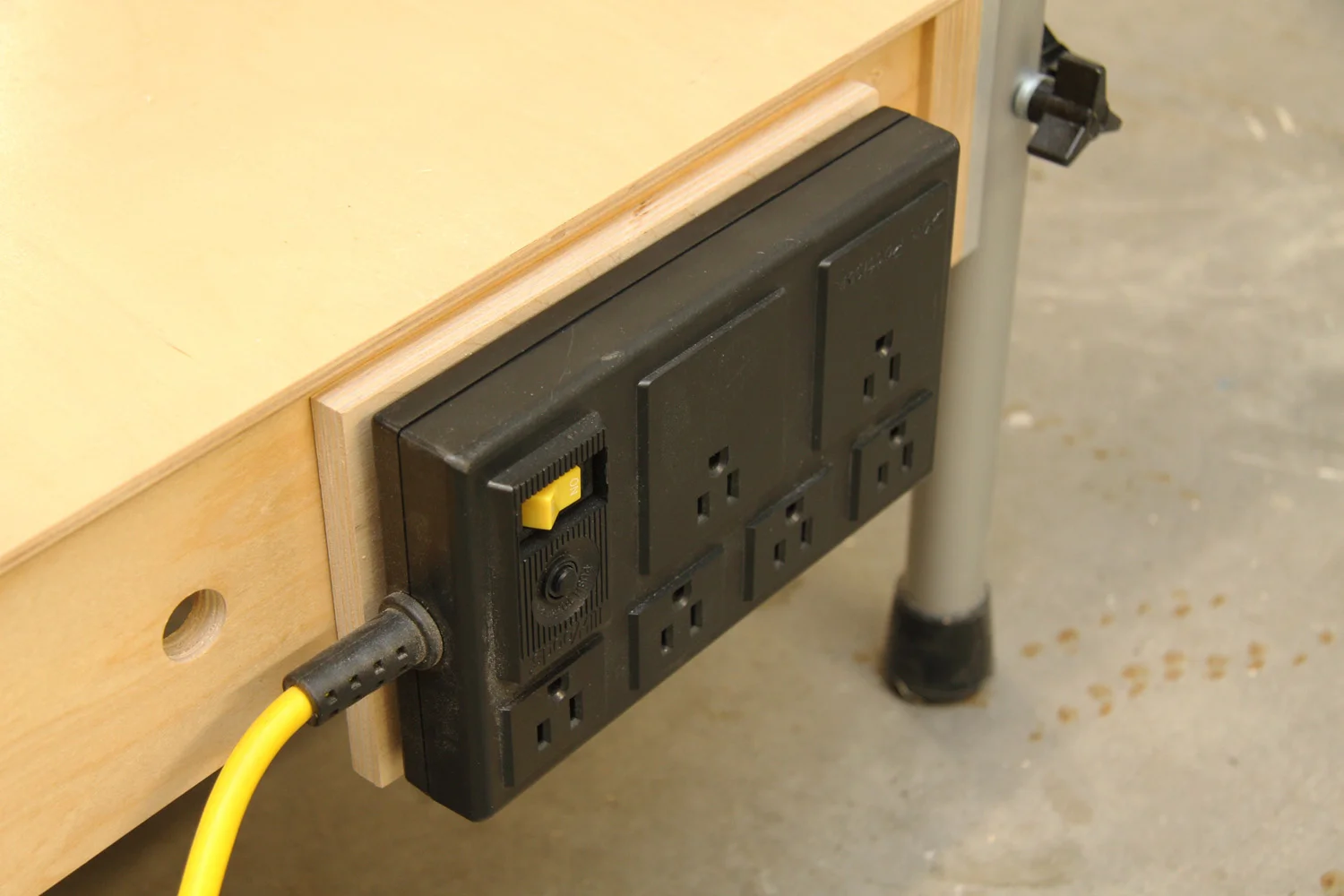

MPT Power Block Mount
Power block mount
The power block mount allows a power block or bar to be easily mounted anywhere on the aprons or stretchers for easy accessibility. This accessory registers in any two holes and secures with knobs from behind.
MPT Tool Tray
tool tray
The tool tray gives a place to keep tools and supplies out of the way but close at hand. The tray will mount anywhere around the perimeter of the MPT so it can be placed wherever works best for the given task. The tray is also sized to fit in an L-Boxx for easy transportation.
MPT Sacrificial Cutting Strips
sacrificial cutting strips
The sacrificial cutting strips create a cutting surface for full or partial sheets of material. The plywood strips are supported beyond the MPT by two sawhorses with riser jigs clamped on top to bring them to the same height as the MPT surface. The strips avoid cutting into the MPT top and also give support for a full 4x8 sheet. The riser jigs have a height adjustment feature built in so they can be leveled with the top of the MPT on uneven surfaces.

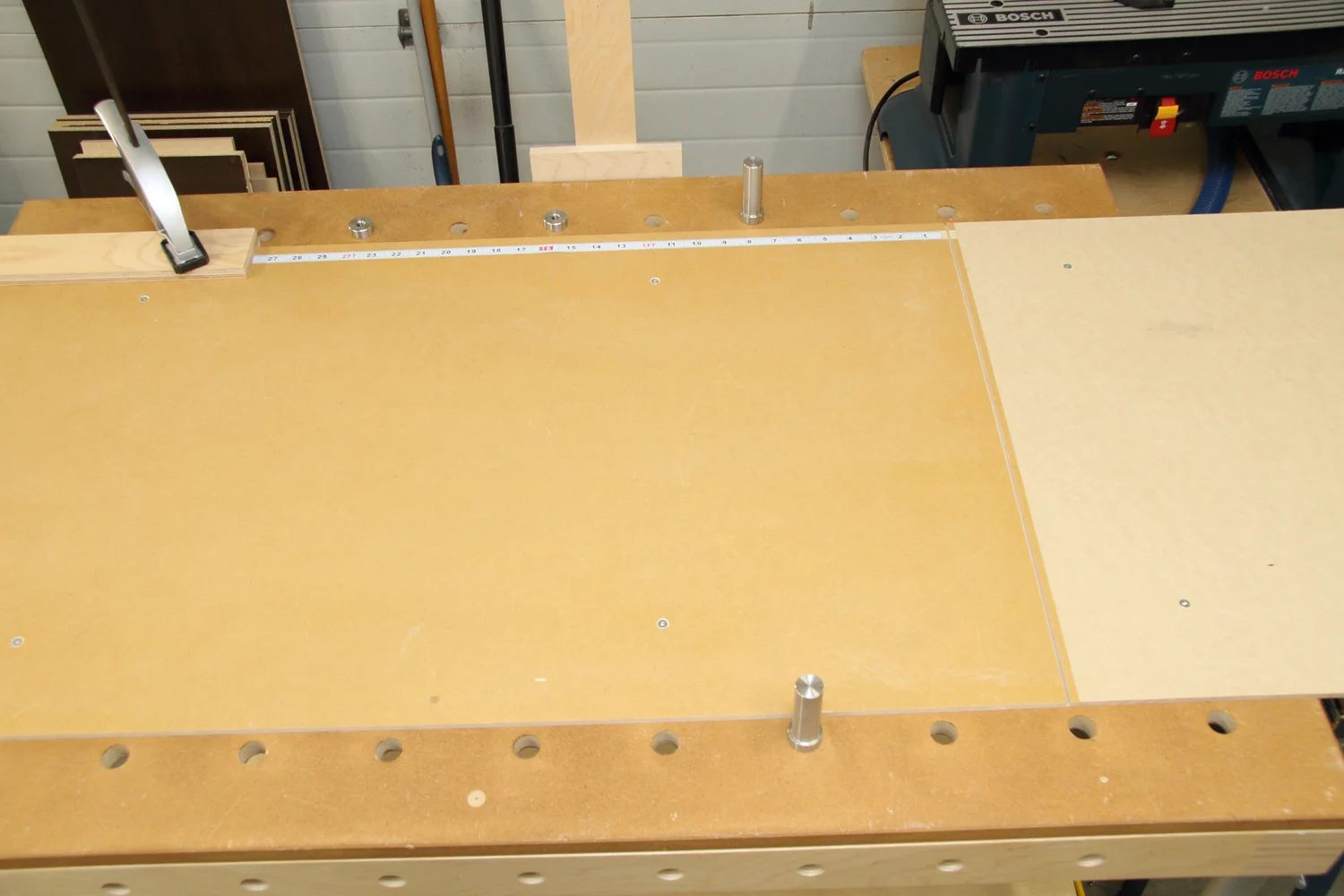

cross cut jig
The cross cut jig works in conjunction with the Parf dogs and gives two major advantages. It avoids having to cut into the MPT top when making cross cuts and it also has a built in bench tape for quickly setting the stop block for repeat cuts. The jig registers on the table so that it installs and removes easily and sits in exactly the same position each time. The stop block is simply set to the desired measurement and clamped in place. The cross cut jig makes very quick work of cutting parts to length very accurately. There is also an extension wing that extends to the right side of the cut that gives full support to the work piece.

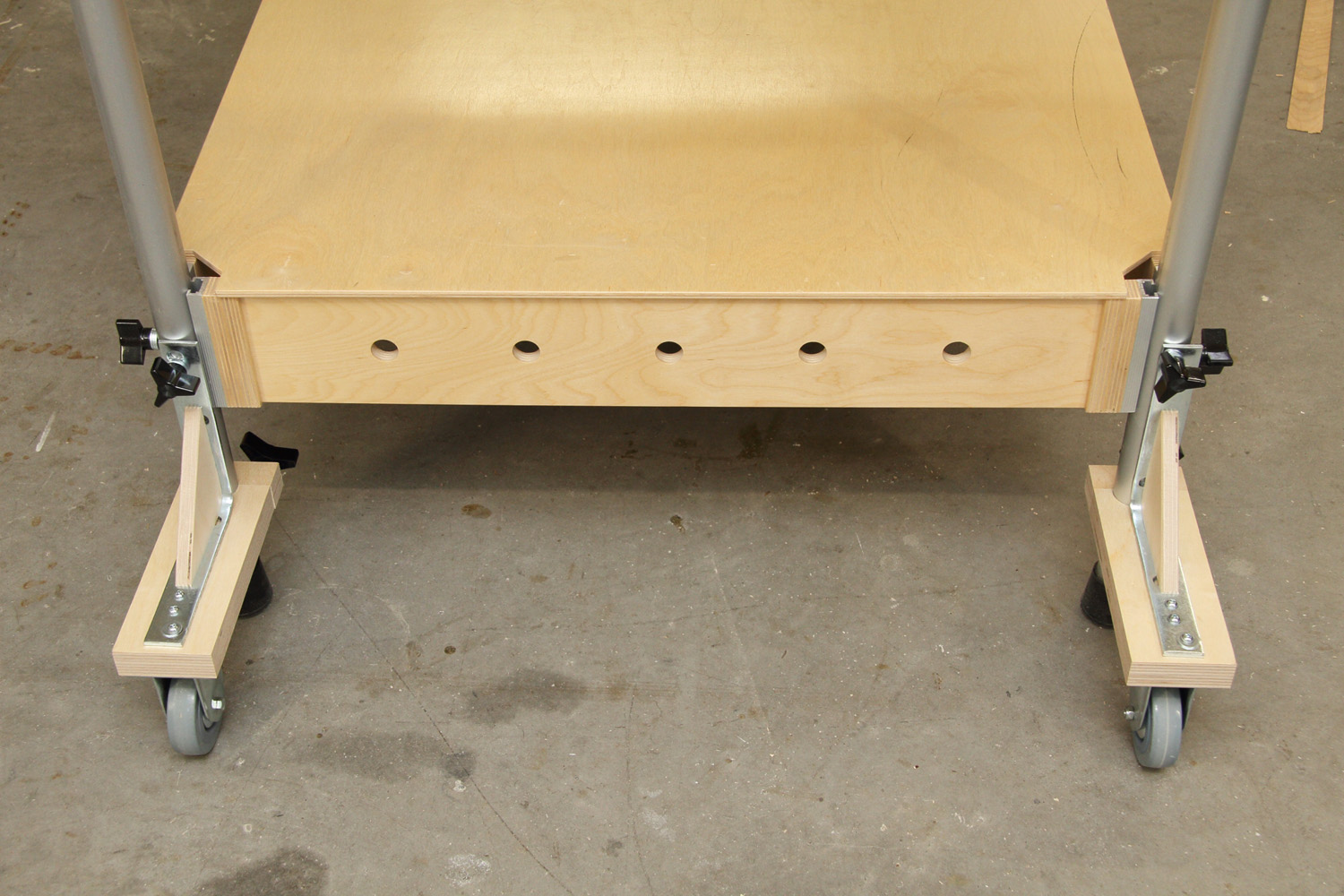

MPT Wheel Brackets
wheel brackets
The wheel bracket accessory allow the MPT to be easily rolled around the shop or site. This adds to the ease of use since the MPT doesn't have to be emptied off and carried to change it's location within a room or the shop. The wheel brackets securely and quickly mount to one end of the MPT and then the opposite end is lifted up slightly to shift the weight onto the wheels. The MPT can then be easily wheeled around and steered to change it's position.
MPT Dust Hose Arm
Dust Hose Arm
The dust hose arm accessory holds a dust extraction hose up out of the way and takes the weight off of the tool that it's connected to. The dust hose arm accessory can be mounted anywhere around the perimeter of the MPT. The top arm can be rotated 360 degrees and locked in any position. Whether you are sanding, sawing or routing, the dust hose arm makes the task much easier and more efficient when using a dust extractor or shop vac.
